498.101,60 € — EXW Ingersoll Rand Warehouse PriceGenuine Ingersoll RandDirect supply from Ingersoll Rand warehouseSupplier availability: Available on backorderAvailability is informational and does not constitute a stock reservation. Availability is rechecked before order confirmation.
The BHS150-4LC2A3P4E12M10MNQZ-E-ND072303 is an Ingersoll Rand BOP Handling Systems air bop handling system execution. The execution data specifies 150 metric tons for system capacity. The full model reference is retained for quotation, configuration review and ordering.
150 t air BOP handling system comprising four 37.5 t air chain hoists with powered trolleys. Mirror arrangement, 12 m lift and 10 m controls are specified. Included options comprise M material traceability, N clevis, QZ offshore coating and festoon air-supply arrangements for 13 m travel. The trolley brake detail remains subject to manufacturer confirmation.
| Manufacturer | Ingersoll Rand |
|---|---|
| Series | BOP Handling Systems |
| Base model | BHS150 |
| Full model / SKU | BHS150-4LC2A3P4E12M10MNQZ-E-ND072303 |
| System capacity | 150 metric tons |
| Nominal load capacity | 37,5 metric tons |
| Number of chain falls | 3 |
| Height of lift | 12 meters |
| Type of chain | 22 x 66 mm (grade 8) |
| Chain safety factor | > 5 |
| Working pressure range | 5 to 7,2 bar |
| Lifting speed at no load | 0 to 1.2 m/min |
| Lifting speed at nominal load | 0 to 0.8 m/min |
| Free air consumption (hoist) | 0 to 8 m3/min. |
| Number of trolley wheels | 8 |
| Travelling speed with rated load | 0 to 12 m/min |
| Free air consumption (trolley) | 0 to 1.4 m3/min |
| Wide Beam flange width | 405 mm. (suitable for flat beam) |
| Beam bottom flange thickness | 50 mm max. |
| Minimum headroom from trolley wheels to bottom hook | 1021 mm |
| Estimated weight of the hoist and trolley set with 12 m of lift | 2130 kg |
| Weight per meter of lift | 32.1 kg |
This 150 t BOP handling system consists of 4 individual 37.5 t air chain hoists with powered trolleys. Unless expressly identified as system data, the technical table values are for one hoist/trolley assembly, not for the combined system. Load sharing, supporting beams and the approved installation arrangement require project review.
Send the required load, working travel or rope length, control reach, mounting arrangement, site temperature and available power supply to AVISTA. Also identify any required hazardous-area classification or third-party witness activity. An accessory, marking or certificate available for another execution is not automatically included in this model.
AVISTA public price: EUR 498,101.60 for one complete unit or specified package. Supply is on an order/backorder basis. Delivery timing, freight, packing, taxes and the final approved scope are confirmed in the order quotation. Historical supplier lead times are not presented as current stock availability.

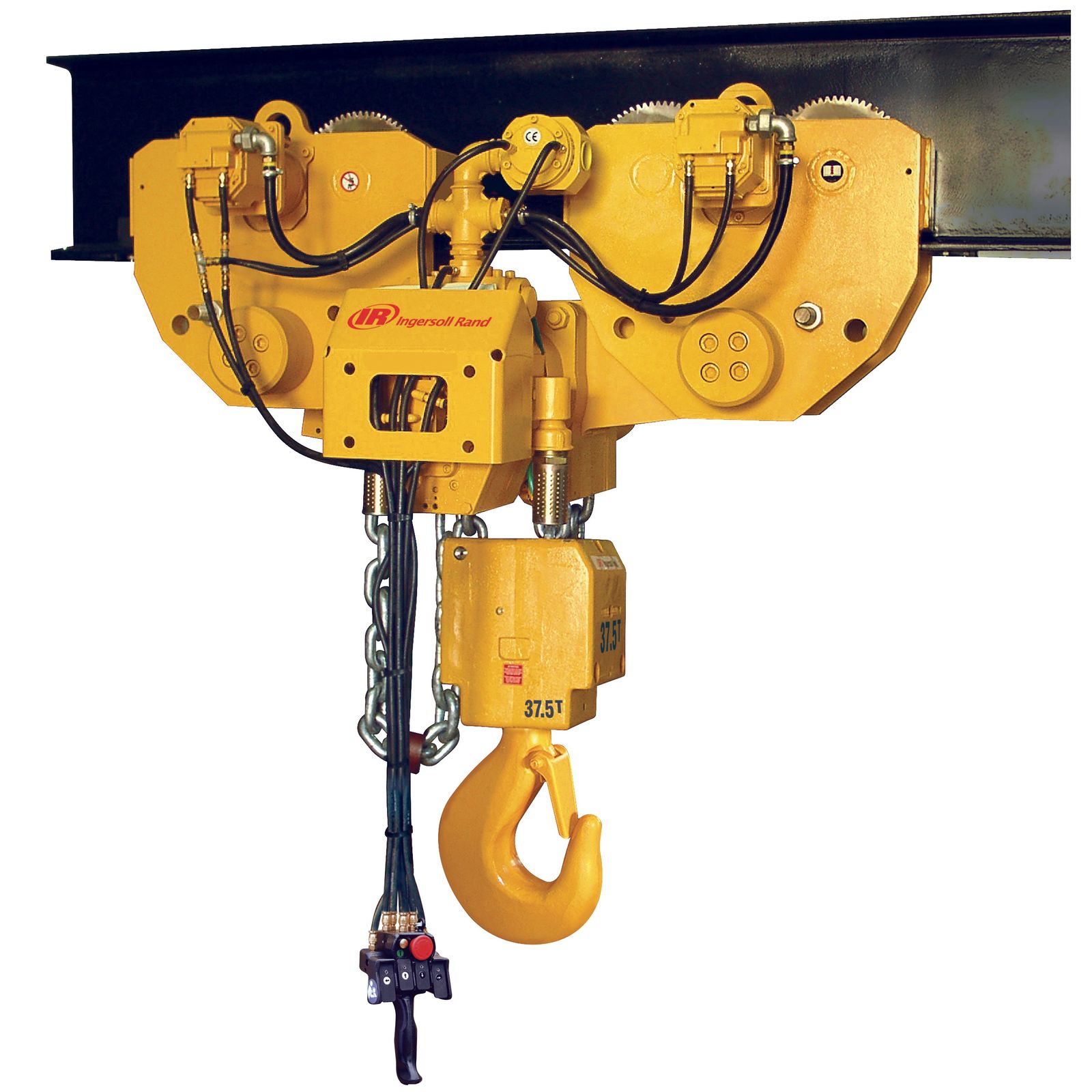

The photograph is representative of the stated series unless identified as an exact execution image. Controls, guards, paint, trolley arrangement and included accessories may differ. The written scope and approved unit documents take precedence.
Use BHS150-4LC2A3P4E12M10MNQZ-E-ND072303 without shortening its suffixes. Specify the required operating duty and any additional options separately so that a similar-looking model is not substituted.
