Prices are for information purposes only. Please contact us for the final price.
7.235,20 € — EXW Ingersoll Rand Warehouse PriceGenuine Ingersoll RandDirect supply from Ingersoll Rand warehouseSupplier availability: Available on backorderAvailability is informational and does not constitute a stock reservation. Availability is rechecked before order confirmation.
The BU7A is an Ingersoll Rand Classic Air air winch execution. The execution data specifies 1,000 lbs. (455 kgs.) on mid-layer for line pull rating. The full model reference is retained for quotation, configuration review and ordering.
The selected model is described by the execution data below. Optional accessories from the wider series are not included unless expressly stated in the order quotation.
| Manufacturer | Ingersoll Rand |
|---|---|
| Series | Classic Air |
| Base model | BU7A |
| Full model / SKU | BU7A |
| Line Pull Rating | 1,000 lbs. (455 kgs.) on mid-layer |
| Line Speed | Variable; 0 – 43 fpm (13 mpm) on mid-layer |
| Wire Rope Storage Capacity | 228 feet (69 mts) with 1/4 inch (6.5mm) dia. wire rope. Wire rope not included unless otherwise noted. *Recommended wire rope working capacity is 80% of the value shown above. |
| Construction | All steel base and drum |
| Design Factor | 5:1 |
| Design Temperature | 0 degrees C. |
| Motor Type | Piston |
| Motor H.P | 1.6 HP |
| Gearing | Spur |
| Brake(s) | Manual drum brake. Automatic drum brake is optional (AB) not included. |
| Drum Length | 4.5 inch |
| Drum Winding | Overwound |
| Inlet Size | 1/2 inch NPT |
| Exhaust Size | 3/4 inch NPT |
| Pressure | 90 psig (6.3 bar) at the air inlet (dynamic) |
| Flow | 50 cfm (1.4 m3/min) |
| Air Supply Hose | 3/4 inch I.D. (recommended; not included) |
| Testing | 125% SWL per standard IR test procedure |
| Weight | (estimated): 90 lbs (41 kgs) |
The full execution code identifies the selected Ingersoll Rand winch configuration. Performance values must be read with the stated rope layer and dynamic supply conditions. Drum storage is not the same as usable working length, and any recommended rope-capacity limit stated in the technical data remains applicable.
Send the required load, working travel or rope length, control reach, mounting arrangement, site temperature and available power supply to AVISTA. Also identify any required hazardous-area classification or third-party witness activity. An accessory, marking or certificate available for another execution is not automatically included in this model.
AVISTA public price: EUR 7,235.20 for one complete unit or specified package. Supply is on an order/backorder basis. Delivery timing, freight, packing, taxes and the final approved scope are confirmed in the order quotation. Historical supplier lead times are not presented as current stock availability.

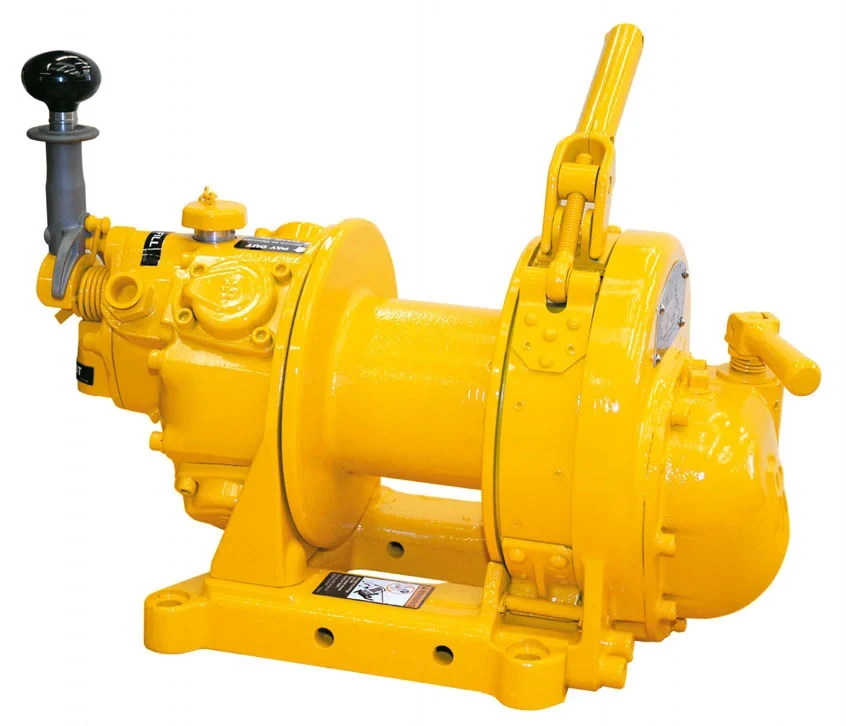

The photograph is representative of the stated series unless identified as an exact execution image. Controls, guards, paint, trolley arrangement and included accessories may differ. The written scope and approved unit documents take precedence.
Use BU7A without shortening its suffixes. Specify the required operating duty and any additional options separately so that a similar-looking model is not substituted.
Request a quotation from AVISTA or browse Lifting Equipment. General manufacturer resources are available at Ingersoll Rand Lifting Solutions.
