Prices are for information purposes only. Please contact us for the final price.
43.176,00 € — EXW Ingersoll Rand Warehouse PriceGenuine Ingersoll RandDirect supply from Ingersoll Rand warehouseSupplier availability: Available on backorderAvailability is informational and does not constitute a stock reservation. Availability is rechecked before order confirmation.
The FA2i-MR24MK1-CE-AK082502 is an Ingersoll Rand Infinity Dual Purpose dual-purpose air winch execution. The execution data specifies 2000 kg at top layer for utility line pull rating. The full model reference is retained for quotation, configuration review and ordering.
392 m of 13 mm galvanized non-rotating wire rope and the quoted CE package are included. The special suffix is preserved.
| Manufacturer | Ingersoll Rand |
|---|---|
| Series | Infinity Dual Purpose |
| Base model | FA2i-MR |
| Full model / SKU | FA2i-MR24MK1-CE-AK082502 |
| Construction | All steel base and drum |
| Design factor | 8:1 for personnel lifting |
| Design temperature | 0°C |
| Motor type | Piston air motor |
| Gearing | Planetary |
| Brakes | Manual drum and automatic disc brakes |
| Utility line pull rating | 2000 kg at top layer |
| Personnel line pull rating | 1445 kg at top layer |
| Dynamic inlet pressure | 6.3 bar |
| Utility line speed | 0–15 m/min at top layer |
| Personnel line speed | 0–23 m/min at top layer |
| Air consumption | 8 m³/min |
| Drum length | 24 in |
| Air inlet / exhaust | 1-1/4 in NPT / 1-1/4 in NPT |
| Included wire rope | 392 m; 13 mm; galvanized non-rotating; spooled on drum |
| Control | Local progressive lever |
| Included package | CE package |
Personnel-lifting and utility ratings must not be interchanged. The stated rope layer, control configuration, braking arrangement and emergency features are part of the application review. Where two ratings are shown, each applies only to its stated duty. Use the supplied unit documentation and approved installation requirements before operation.
Send the required load, working travel or rope length, control reach, mounting arrangement, site temperature and available power supply to AVISTA. Also identify any required hazardous-area classification or third-party witness activity. An accessory, marking or certificate available for another execution is not automatically included in this model.
AVISTA public price: EUR 43,176.00 for one complete unit or specified package. Supply is on an order/backorder basis. Delivery timing, freight, packing, taxes and the final approved scope are confirmed in the order quotation. Historical supplier lead times are not presented as current stock availability.

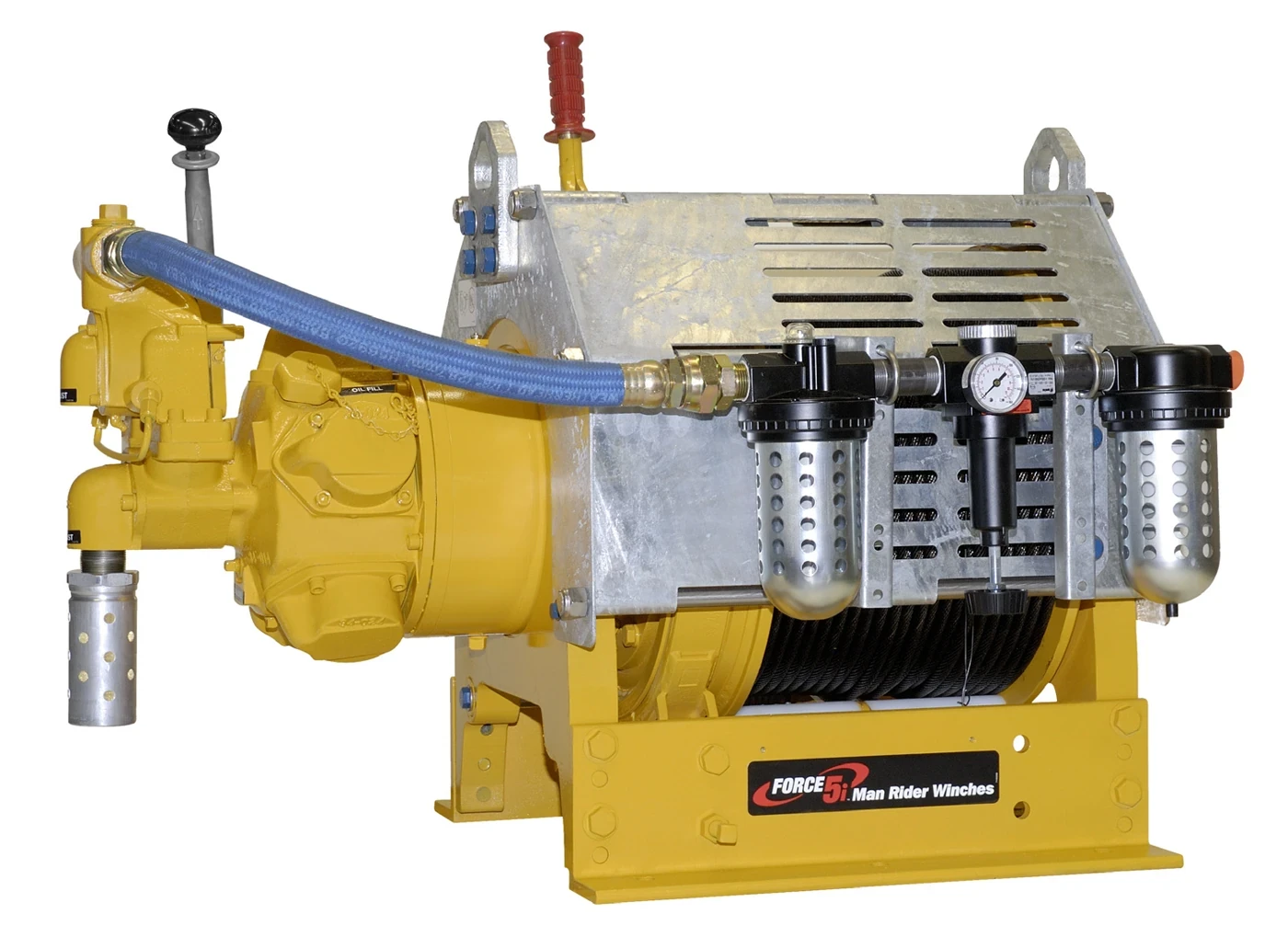

The photograph is representative of the stated series unless identified as an exact execution image. Controls, guards, paint, trolley arrangement and included accessories may differ. The written scope and approved unit documents take precedence.
Use FA2i-MR24MK1-CE-AK082502 without shortening its suffixes. Specify the required operating duty and any additional options separately so that a similar-looking model is not substituted.
Request a quotation from AVISTA or browse Lifting Equipment. General manufacturer resources are available at Ingersoll Rand Lifting Solutions.
Available on backorder
